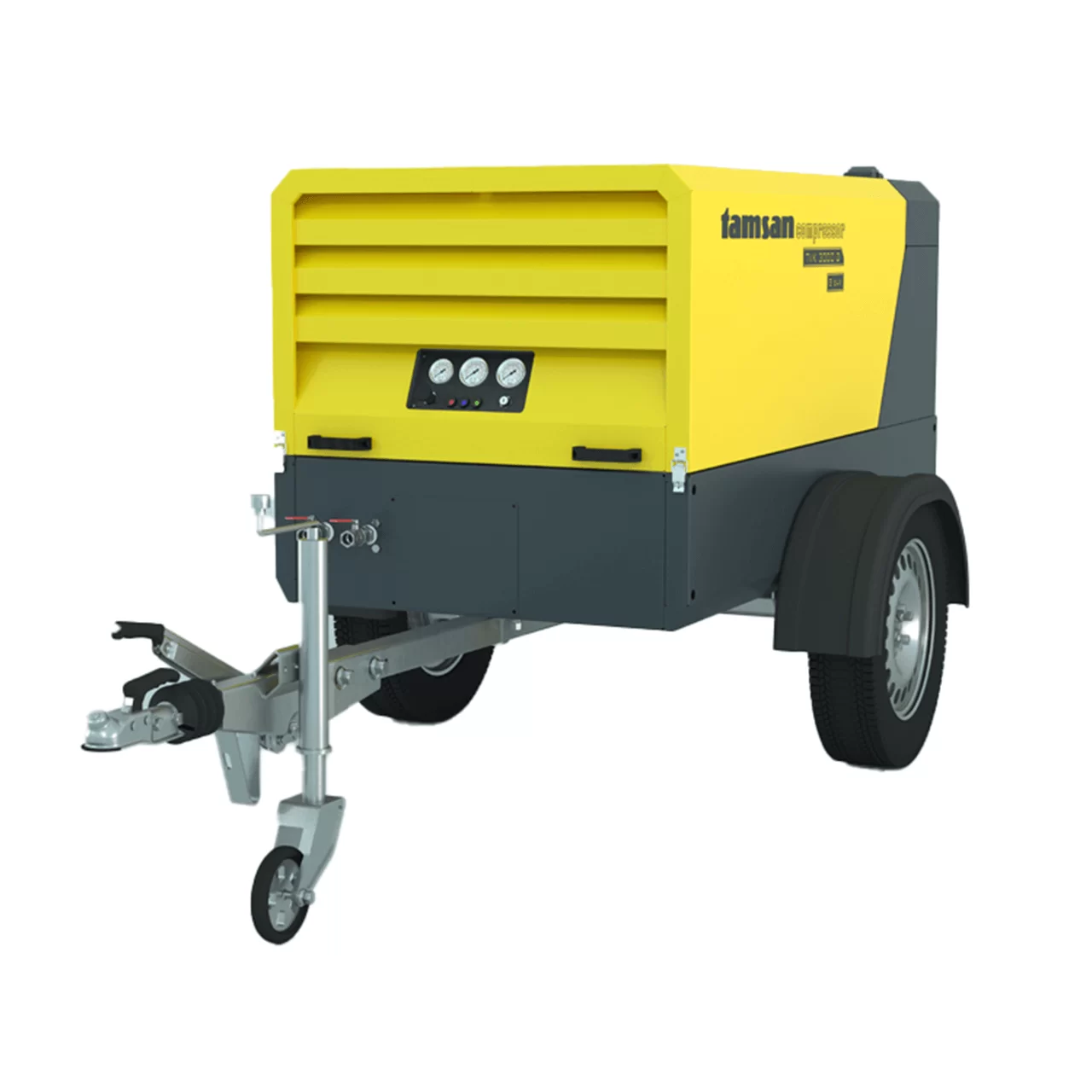

TVK Series Diesel Screw Compressor
The TVK Series Diesel Screw Compressors are engineered to meet industrial demands with exceptional efficiency, durability, and high performance. Featuring a direct-coupled connection system, low energy consumption, and easy portability, these compressors ensure superior operation even in the most challenging conditions. Manufactured with Pertofeb Services’ quality assurance, the TVK Series is designed to enhance business efficiency across various industrial applications.
Featured Features
✅ Direct Coupled Connection:
Transfers engine power directly to the screw system without a coupling connection, ensuring zero-loss power transfer.
✅ High Performance:
Powered by Perkins-brand diesel engines, delivering long-term, high-efficiency operation.
✅ Easy Portability:
Equipped with hanging loops and a balanced lifting design, allowing effortless movement within the facility.
✅ Shock Absorber Hood:
Features an openable shock-absorber-supported hood, making maintenance operations quick and hassle-free.
✅ Energy Efficiency:
Optimized for low fuel consumption, ensuring long-term energy savings and cost efficiency.
Technical Specifications
Feature | TVK 3000 D | TVK 5200 D | TVK 7200 D | TVK 9000 D |
---|---|---|---|---|
Flow rate [m3/min] | 2.9 | 5.2 | 7.2 | 9 |
Pressure [bar] | 8 | 8 – 12 | 8 | 8 – 10 |
Technology | Screwed | Screwed | Screwed | Screwed |
Screw | TV7 | TV 12 | German | German |
Engine Type | Diesel | Diesel | Diesel | Diesel |
Engine Brand | Diesel | Perkins | Perkins | Perkins |
Number of Cylinders | 3 | 4 | 4 | 4 |
Engine Power [hp] | 28 | 60 | 60 | 110 |
Engine Cooling | This | Oil | Oil | Oil |
Provocation | Direct Coupled | Direct Coupled | Direct Coupled | Direct Coupled |
Engine Speed [rpm] | 3000 | 2600 | 2600 | 2600 |
Screw Speed [rpm] | 3000 | 2600 | 2600 | 2600 |
Control Panel | Manual | Manual | Manual | Manual |
Type of Work | Load – Empty | Load – Empty | Load – Empty | Load – Empty |
Number of Air Outlets | 2 | 2 | 2 | 3 |
Fuel Tank [lt] | 55 | 60 | 60 | 60 |
Weight [kg] | 750 | 950 | 1250 | 1780 |
Cabin Lock | There is | There is | There is | There is |
Radiator | Monoblock | Monoblock | Monoblock | Monoblock |
