Fish Farming Butterfly Valves

Overview

Product Overview

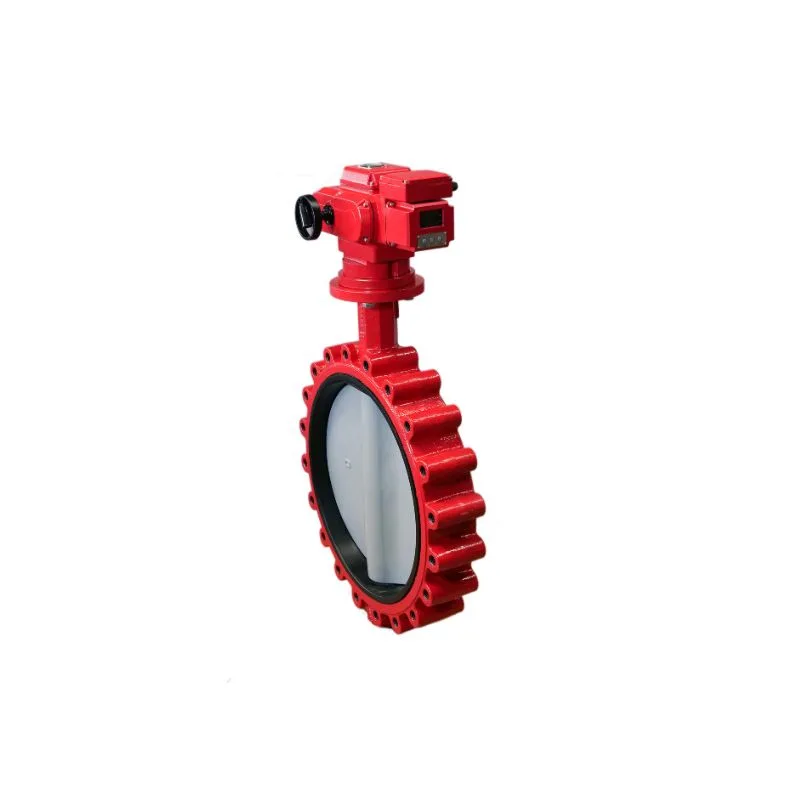

This butterfly valve is engineered for durability and efficiency, offering optimal performance across various water applications, including seawater environments. Manufactured in compliance with ISO 9001, it ensures reliability, long service life, and excellent sealing performance. Available in wafer, lug, double flange, and U-type flange configurations, this valve provides flexibility for different installation needs.

Technical Requirements

• Size Range: DN40 , DN600 (1.5’’ , 24’’)
• Medium Compatibility: Water, Sea Water
• Standards Compliance: EN593, AWWA C504, MSS SP-67
• Pressure Ratings: CLASS 125-300, PN10-25, 200-300 PSI
• Materials: CI, DI, Al-Bronze, Stainless Steel

IFLOW’s Contribution to World-Leading Fish Farms

IFLOW provides advanced valve solutions for the world’s top land-based salmon producers. Our valves enable automated control of water treatment systems, ensuring efficient water recycling, seawater purification, and sludge removal. This contributes to optimal biological and growth conditions for fish, supporting sustainable aquaculture practices.

By integrating innovative technology for both offshore and land-based fish farming, IFLOW helps maintain high water quality, significantly enhancing fish welfare. Our commitment to innovation and responsibility drives the development of sustainable solutions that improve fish health while minimizing environmental impact.

Specification

Part Name	Material
Body	DI
Down Bearing	F4
Seat	NBR
Disc	Plated Ductile Iron
Shaft	ASTM A276 416
Middle Bearing	F4
Upper Bearing	F4
O Ring	NBR
