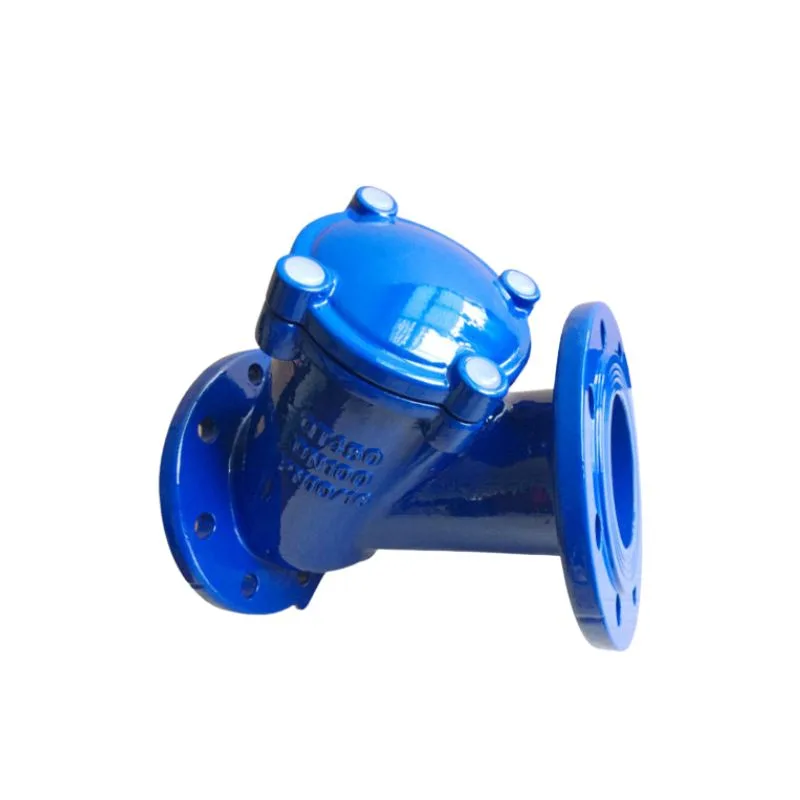

Ball Check Valve
In stock
Size Range: DN50-DN600 (2’’-24’’). Medium: Water (Fresh water, sea water, food, various oils). Standard Compliance: EN12334. Pressure Rating: PN10-16.
Price on request
We quote to your specification, quantity and delivery schedule.
- One business day
- Typical response
- Checked first
- Fit before quote
- Sourced to order
- Beyond the catalog
Product details
Overview
CHV503 Check Valve Specifications
- Size Range: DN50-DN600 (2’’-24’’)
- Medium: Water (Fresh water, sea water, food, various oils)
- Standard Compliance: EN12334
- Pressure Rating: PN10-16
- Material: Cast Iron (CI), Ductile Iron (DI)
Product Overview
The CHV503 check valve is designed to provide reliable, long-lasting performance across various applications. Engineered with high-quality materials and optimized for durability, this valve ensures excellent sealing performance and efficiency. As an ISO 9001-certified product, it meets stringent quality control standards, offering outstanding reliability throughout the design life of your system.
Technical Specifications
- Design & Manufacture: Conforms to BS5153
- Working Pressure: 1.0/1.6 MPa
- Temperature Range:
- NBR Sealing: 0℃~80℃
- EPDM Sealing: -10℃~120℃
- Face-to-Face Dimension: DIN3202 F6
- Flange Standard: EN1092-2, ANSI125/150
- Testing Standards: DIN3230, API598
This check valve is ideal for use in water supply systems, industrial applications, and oil & gas processing, ensuring efficient flow control and minimal maintenance requirements.
Specification
| RT NAME | MATERIAL |
| Body | GG25/GGG40 |
| Ball | Metal+NBR/EPDM |
| Cap | GG25/GGG40 |
| Bolt | Stainless steel |
| Gasket | NBR/EPDM |
Need a variant, or unsure which model fits?
Send us the operating conditions and we will confirm the specification before you order.
