Drilling Equipment and Valves

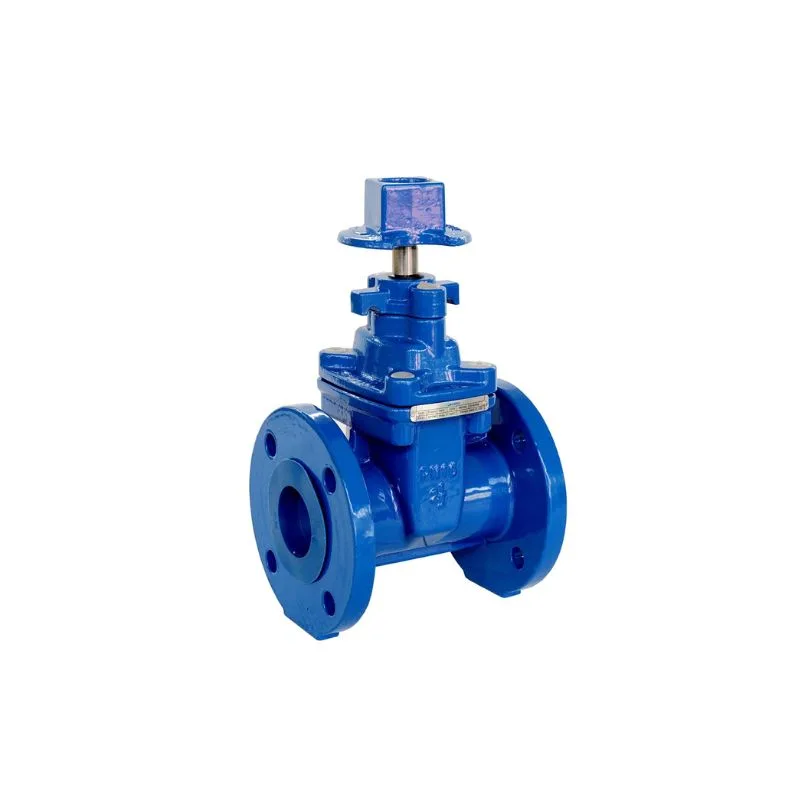

Ductile Iron Flanged NRS Resilient Wedge Gate Valve
In stock
Design Standard: AWWA C509 / C515. Flow Performance: Very low flow resistance for optimized fluid performance. Symmetrical Design: Bidirectional flow capability, easy to install.
Price on request
We quote to your specification, quantity and delivery schedule.
- One business day
- Typical response
- Checked first
- Fit before quote
- Sourced to order
- Beyond the catalog
Product details
Overview
GAV501 Gate Valve Specifications
- Design Standard: AWWA C509 / C515
- Flow Performance: Very low flow resistance for optimized fluid performance
- Symmetrical Design: Bidirectional flow capability, easy to install
- Flush Bottom: Prevents debris accumulation, ensuring unobstructed fluid flow
- Corrosion Protection:
- Internally and externally fusion-bonded food-grade epoxy coating
- Disc liner made of food-grade rubber for rust-proof and hygienic operation
- Sealing Performance: Reliable sealing with zero leakage
Product Overview
The GAV501 Gate Valve is designed for high efficiency, durability, and reliable performance in various industrial and municipal water applications. Engineered for low flow resistance and easy maintenance, it ensures long-term reliability and corrosion protection through food-grade coatings. As an ISO 9001-certified product, it guarantees quality assurance and optimal functionality.
Technical Specifications
- Design & Manufacture: Conforms to AWWA C509 / C515
- Flange Dimensions: Complies with ANSI B16.1
- Face-to-Face Dimensions: ANSI B16.10
- Testing Standards: AWWA C509 / C515
- Driving Mode: Square Cover
The GAV501 Gate Valve provides superior sealing, corrosion resistance, and effortless cleaning, making it an ideal choice for municipal water systems, industrial applications, and wastewater treatment plants.
Specification
| Max Working Pressure | 200PSI |
| Working Temperature | -10℃~+120℃ （14℉ - 248℉） |
| Service Medium | Fresh Water, Sea Water, Sewage, Oil etc. |
| PART | SPECIFICATION |
| Body | ASTM A536 65-45-12 |
| Bonnet | ASTM A536 65-45-12 |
| Disc | ASTM A536 65-45-12 |
| Handwheel | ASTM A536 65-45-12 |
| Stem | ASTM A276 SS420 |
| Coating | Food Grade Epoxy Power WRAS Approved |
| Seat* | Food Grade EPDM WRAS Approved |
Need a variant, or unsure which model fits?
Send us the operating conditions and we will confirm the specification before you order.
