Fish Farming Butterfly Valves
This butterfly valve is engineered for durability and efficiency, offering optimal performance across various water applications, including seawater environments.
Drilling Equipment and Valves
EN593 PN10/PN16/PN25/Class 125/Wafer Type Butterfly Valve With PINS
In stock
Type: Wafer Type Butterfly Valve. Medium: Water. Standard Compliance: EN593 / AWWA C504 / MSS SP-67. Pressure Rating: CLASS 125-300.
Price on request
We quote to your specification, quantity and delivery schedule.
- One business day
- Typical response
- Checked first
- Fit before quote
- Sourced to order
- Beyond the catalog
Product details
Overview

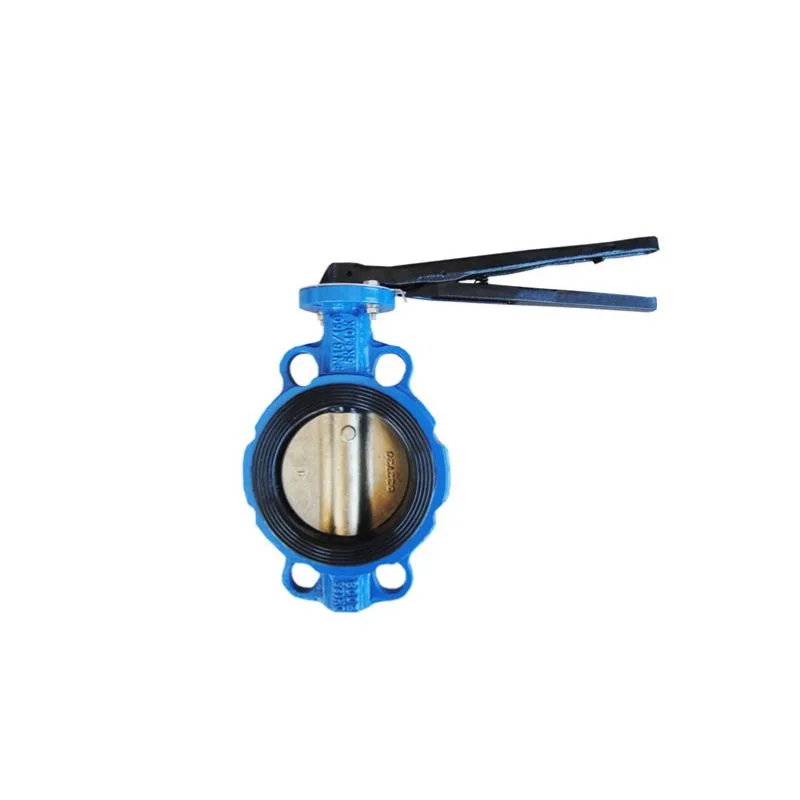

BFV301S Butterfly Valve Specifications
- Type: Wafer Type Butterfly Valve
- Medium: Water
- Standard Compliance: EN593 / AWWA C504 / MSS SP-67
- Pressure Rating:
- CLASS 125-300
- PN10-25
- 200-300 PSI
- Material: Cast Iron (CI), Ductile Iron (DI)
Product Overview
The BFV301S Butterfly Valve is designed for reliable flow control in water applications, offering durability and performance under varying pressure conditions. Engineered for ease of installation and long service life, this valve meets stringent industry standards. As an ISO 9001-certified product, it ensures high quality and sealing performance throughout its operational lifespan.
Technical Specifications
- Design & Manufacture: Conforms to EN593, API609
- Flange Dimensions: Complies with EN1092-2, ANSI B16.1
- Testing Standards: EN12266-1, API 598
- Driving Modes:
- Lever
- Worm Actuator
- Electric Actuator
- Pneumatic Actuator
The BFV301S Butterfly Valve is versatile, corrosion-resistant, and suitable for industrial and municipal water systems, ensuring efficient performance with minimal maintenance requirements.
Specification
| Part Name | Material |
| Body | DI |
| Seat | NBR |
| Disc | Plated Ductile Iron |
| Shaft | ASTM A276 416 |
| Middle Bearing | F4 |
| O Ring | NBR |
| Pin | ASTM A276 416 |
Need a variant, or unsure which model fits?
Send us the operating conditions and we will confirm the specification before you order.
