Drilling Equipment and Valves

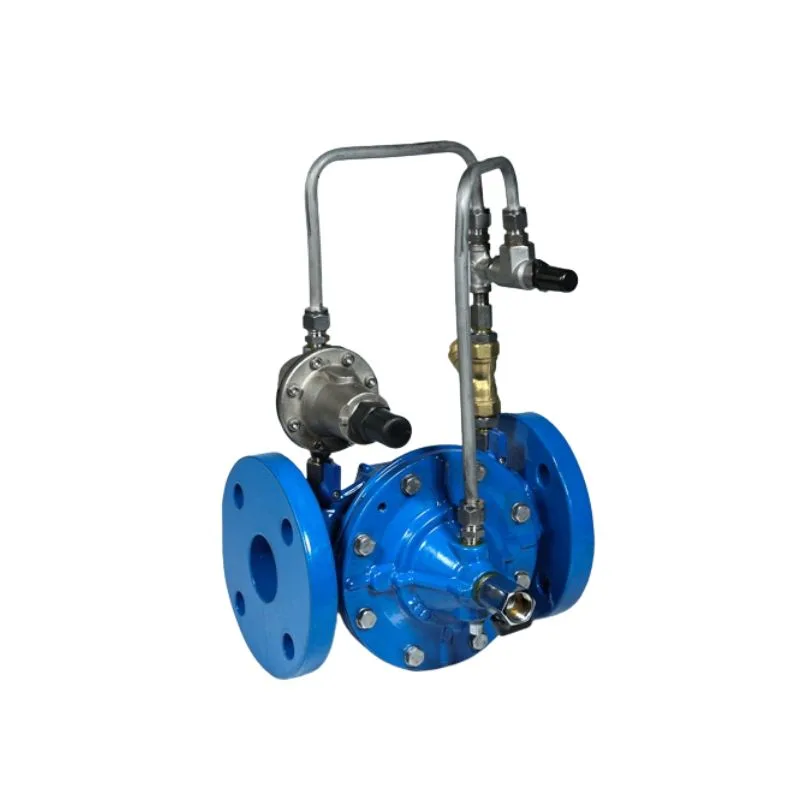

Pressure Reducing Control Valve
In stock
Maximum Temperature: 90°C. Flange Type: Default pressure rating of 16 bar (if not specified). Screw Type: 1″1/2 F/F.
Price on request
We quote to your specification, quantity and delivery schedule.
- One business day
- Typical response
- Checked first
- Fit before quote
- Sourced to order
- Beyond the catalog
Product details
Overview
CV007 Valve Specifications
- Maximum Temperature: 90°C
- Flange Type: Default pressure rating of 16 bar (if not specified)
- Screw Type: 1″1/2 F/F
PRODUCT OVERVIEW
American Block’s engineered valve solutions are designed to meet the most demanding process requirements. Our range can be customized with optimized body construction, materials, and ancillary features to suit your application. As an ISO 9001-certified manufacturer, we ensure high-quality standards, delivering outstanding reliability and sealing performance throughout the design life of your asset.
TECHNICAL REQUIREMENTS
Valve Fully Opened:
✔ Avoid Cavitation Damage, Excessive differential pressure combined with low downstream pressure may cause cavitation, leading to valve damage.
✔ Pressure Management, To prevent this, refer to differential pressure in multiple stages by installing and connecting two or more control valves in tandem.
For tailored solutions that ensure optimal performance and longevity, trust American Block’s precision-engineered valve technology.
Specification
| Part Name | Material |
| Membrane | Reinforced NBR |
| Drain cock on top cap | Brass |
| (PN16) High pressure top cap | Cast iron |
| Nuts, bolts screws | Stainless steel |
| Replaceable streamlined seat | Bronze |
| Body drain plug | Brass |
| Reversible seat seal | NBR |
| (PN16) High pressure body | Cast iron |
| Holes for pressure gauges |
Need a variant, or unsure which model fits?
Send us the operating conditions and we will confirm the specification before you order.
