AirTAC 4V210-08B-G 5/2 Way Single Solenoid Valve, 1/4", 24VDC

Overview

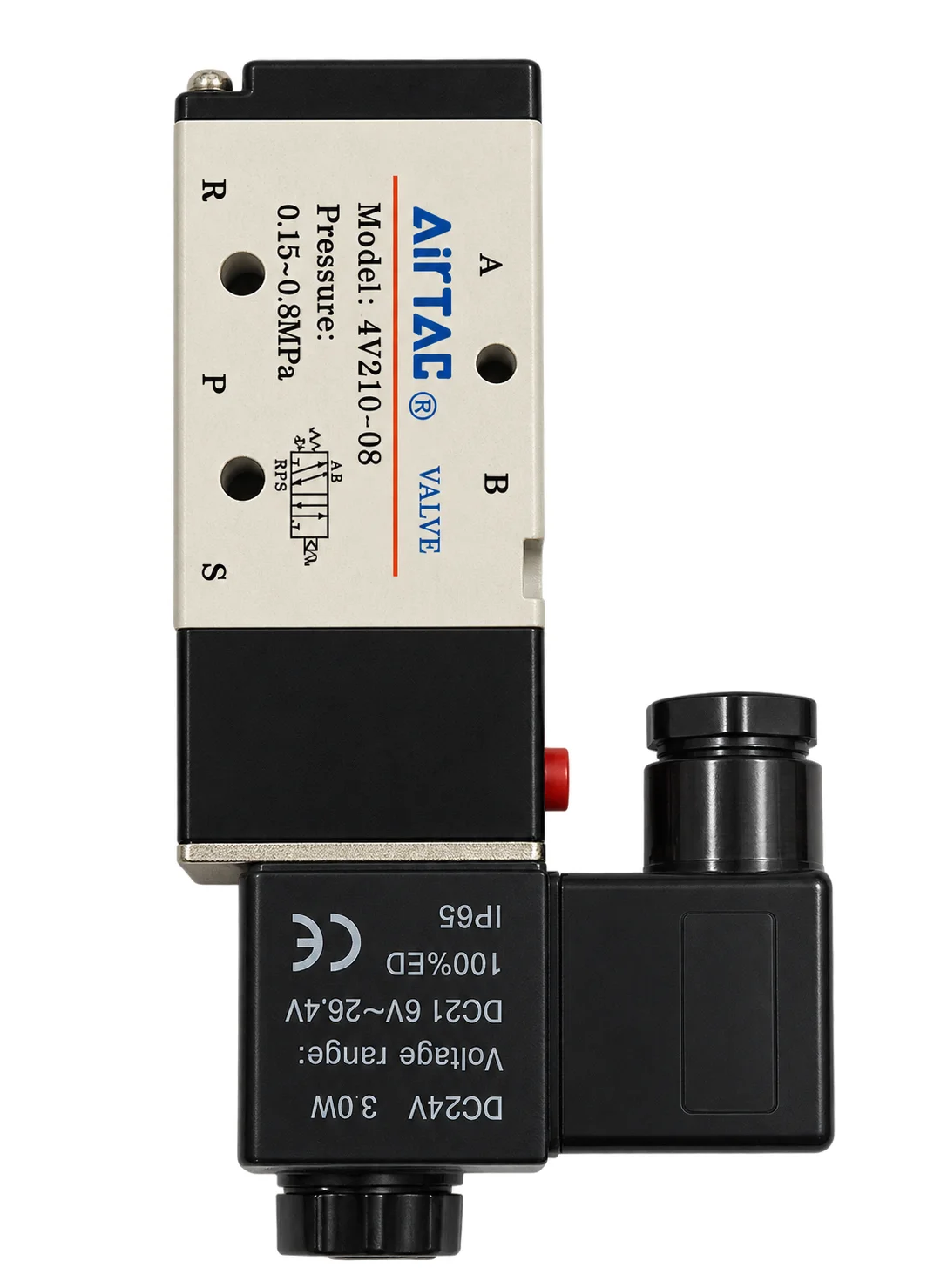

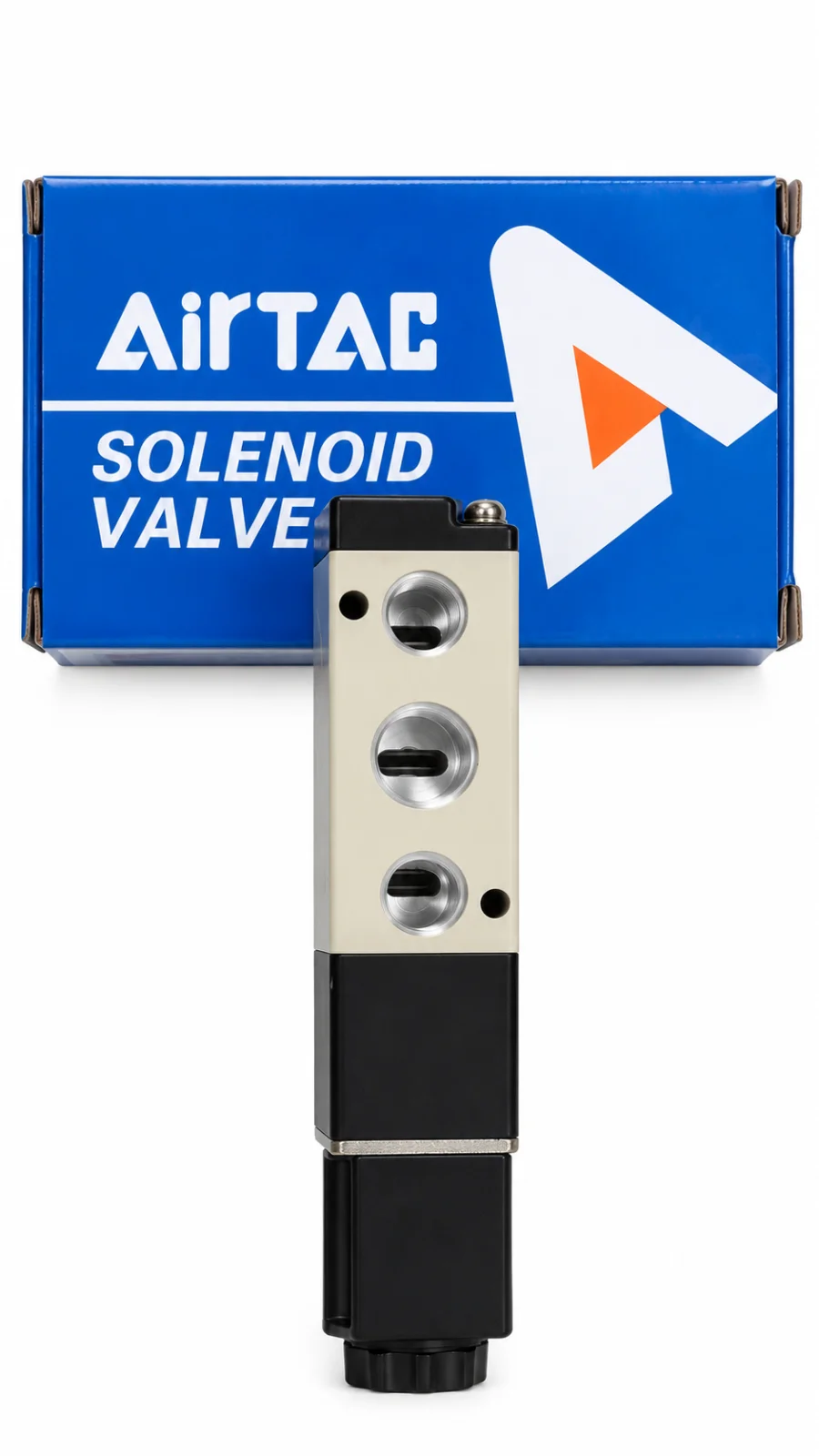

The AirTAC 4V210-08B-G is a single solenoid, 5 port 2 position valve from the AirTAC 4V200 series. It directs compressed air to one of two outlets to drive a double acting pneumatic cylinder or actuator, and a spring returns it to its rest position when the coil is switched off.

This version has 1/4" G threaded inlet and outlet ports, 1/8" exhaust ports and a 24VDC coil with a DIN terminal connector. The coil is rated IP65 and 100% ED for continuous duty, and a manual override on the valve body lets it be operated without power during installation and testing.

Features

• Pilot operated sliding spool design, for good sealing and a sensitive response
• Low friction bore finish, for a low starting pressure and a long service life
• No lubrication needed. If lubricated air is used, keep using it, with ISO VG32 oil or equivalent
• Can be mounted on a manifold base to build a compact valve group
• Manual override for setting up and fault finding

Reading the model code

4V	Solenoid valve, 5/2 or 5/3 way
2	200 series
10	Single solenoid, 5/2 way
08	1/4" port size
B	24VDC coil
(blank)	Terminal (DIN connector) electrical entry
G	G thread

Other versions in the series

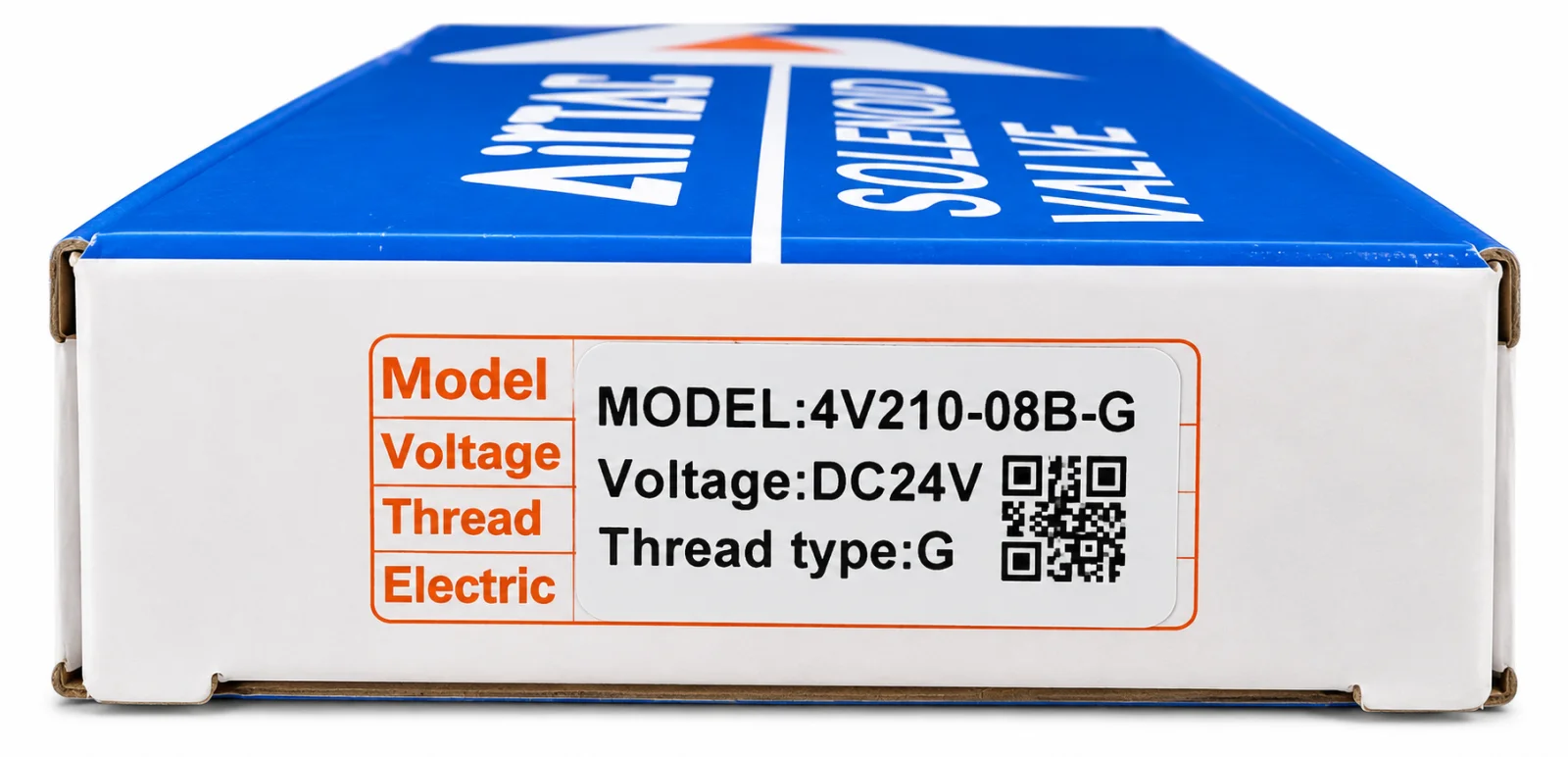

AirTAC builds the same valve with 1/8" ports (4V210-06), as a double solenoid 5/2 way valve (4V220), and as a 5/3 way valve with closed, exhaust or pressure centre (4V230C, 4V230E, 4V230P), with 220VAC, 110VAC, 24VAC or 12VDC coils and a grommet cable entry. Send us the model code printed on the valve or the box, with the quantity, and we will quote it.
