The diaphragm solenoid valve is designed for water or liquid-based applications, providing automatic or remote control over pipelines carrying water, oil, and other liquids....
Price on request
We quote to your specification, quantity and delivery schedule.
Technical detail

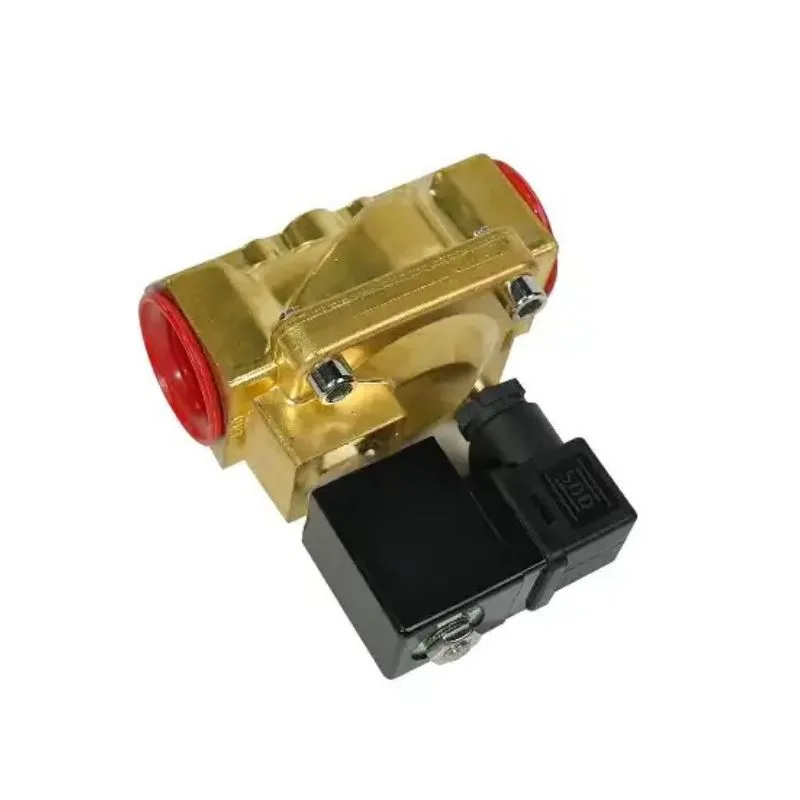

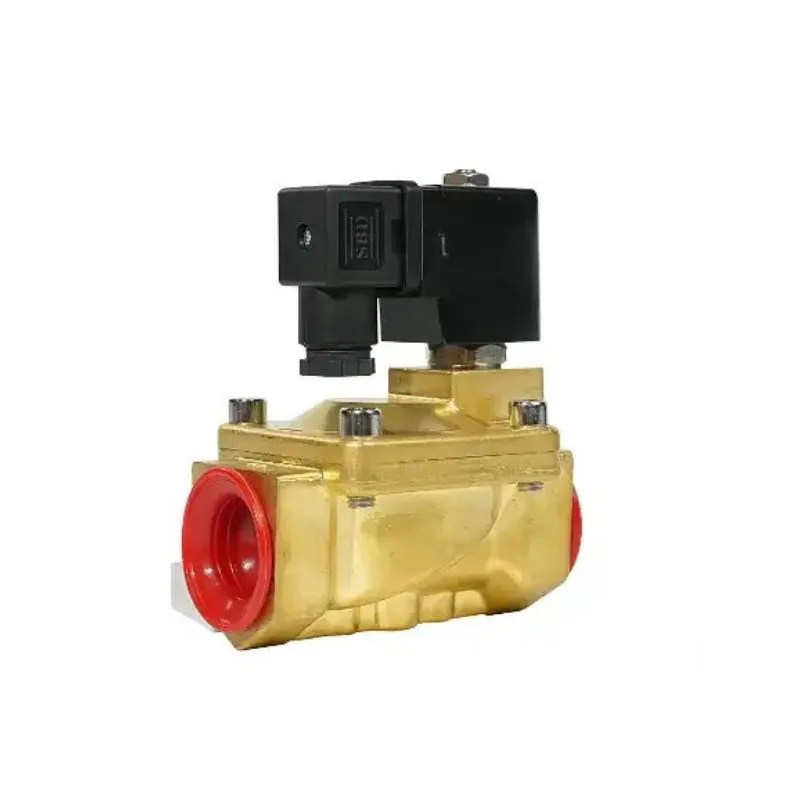

| Name | 2-way large diameter pilot operated (Copper) diaphragm solenoid valve (normally closed) |
| Brand Name | YEKE |
| Control mode | normal close |
| Coil grade | SM Series coil |
| Voltage | AC24V/110V/220V/230V/240V,50/60HZ,DC24V/12V,+10%fluctuation is allowed |
| Sealing material | NBR,VITON,EPDM |
| Body material | wrought brass |
| Connection diameter | 3/8",1/2"3/4",1",1 1/4",1 1/2"，2” |
| Environment temperature | 0℃~65℃ |
| Medium temperature | 0℃~130℃ |
| Installation | In the direction of the arrow on the valve, install it horizontally, the coil is upward, and the medium of oil particles and impurities, please install a filter of more than 60 mesh |
| Working pressure | 20Kgf/cm² |
