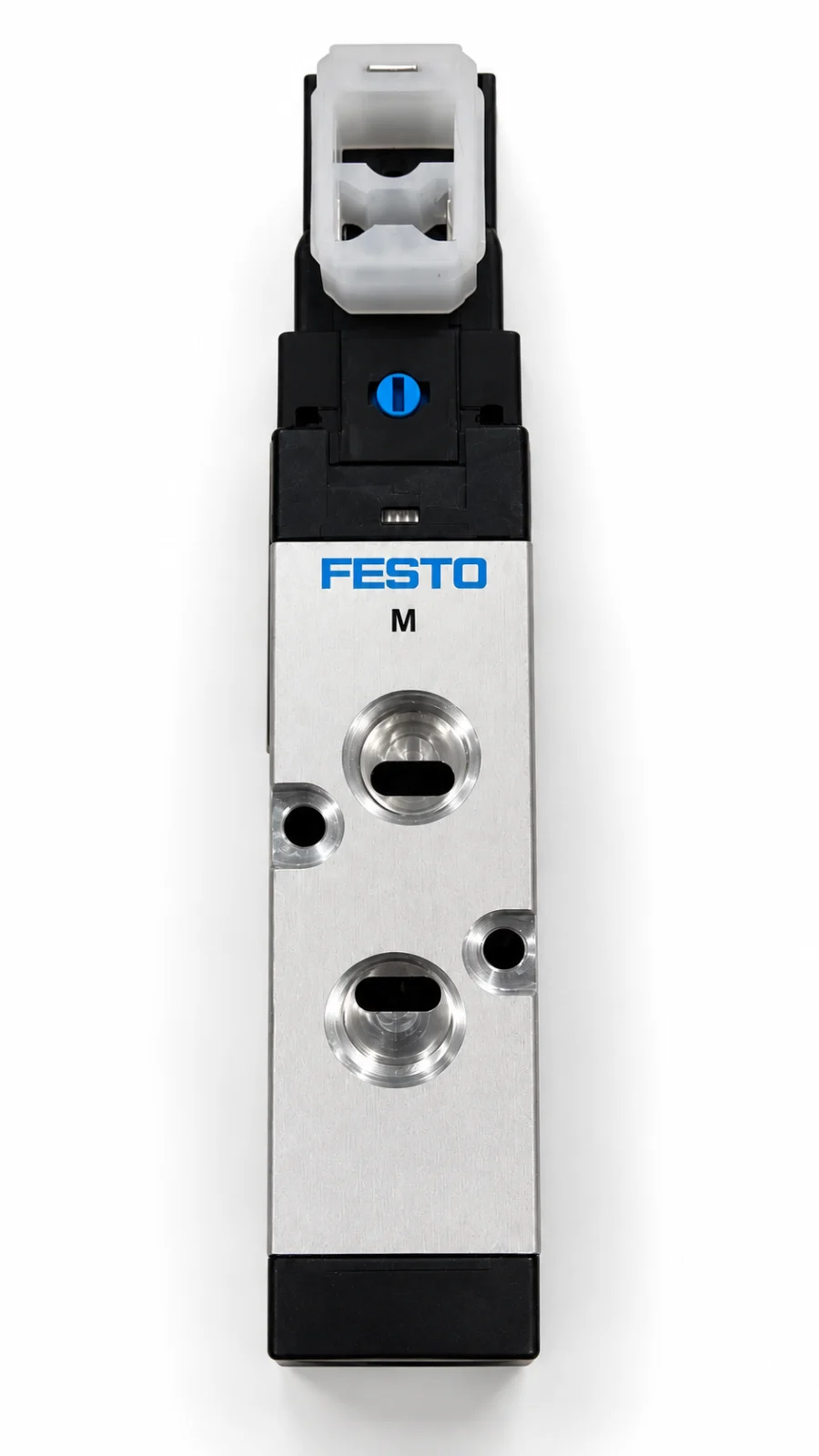

Festo VUVS-LK25-M52-AD-G14-1B2-S 5/2 Way Solenoid Valve, G1/4, 24V DC

Overview

The Festo VUVS-LK25-M52-AD-G14-1B2-S, Festo part number 8043218, is a 5/2 way monostable solenoid valve. One solenoid switches the valve over and a pneumatic spring returns it to its rest position when the coil is switched off, so a single output signal drives a double acting cylinder or actuator in both directions.

It is a piston gate valve with soft seals and G1/4 threads on all five ports, rated at a standard nominal flow of 1000 l/min. The coil runs on 24 V DC at 3.3 W through a type B plug socket, and the valve is IP65 to IEC 60529 with that socket fitted.

Features

• 5/2 way monostable function, electrically actuated with a pneumatic spring return
• Piston gate design with soft sealing, for tight shut off and a low pressure drop
• 1000 l/min standard nominal flow, working pressure 1.5 to 8 bar
• Internal pilot air supply, so no separate pilot line is needed
• Manual override in both detenting and non detenting form, for setting up and fault finding
• Mounts on its own or on a manifold rail, with through holes
• Wrought aluminium housing and piston slide, HNBR and NBR seals, RoHS compliant
• Runs on compressed air to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible, but once lubricated air is used it must always be used

Ordering

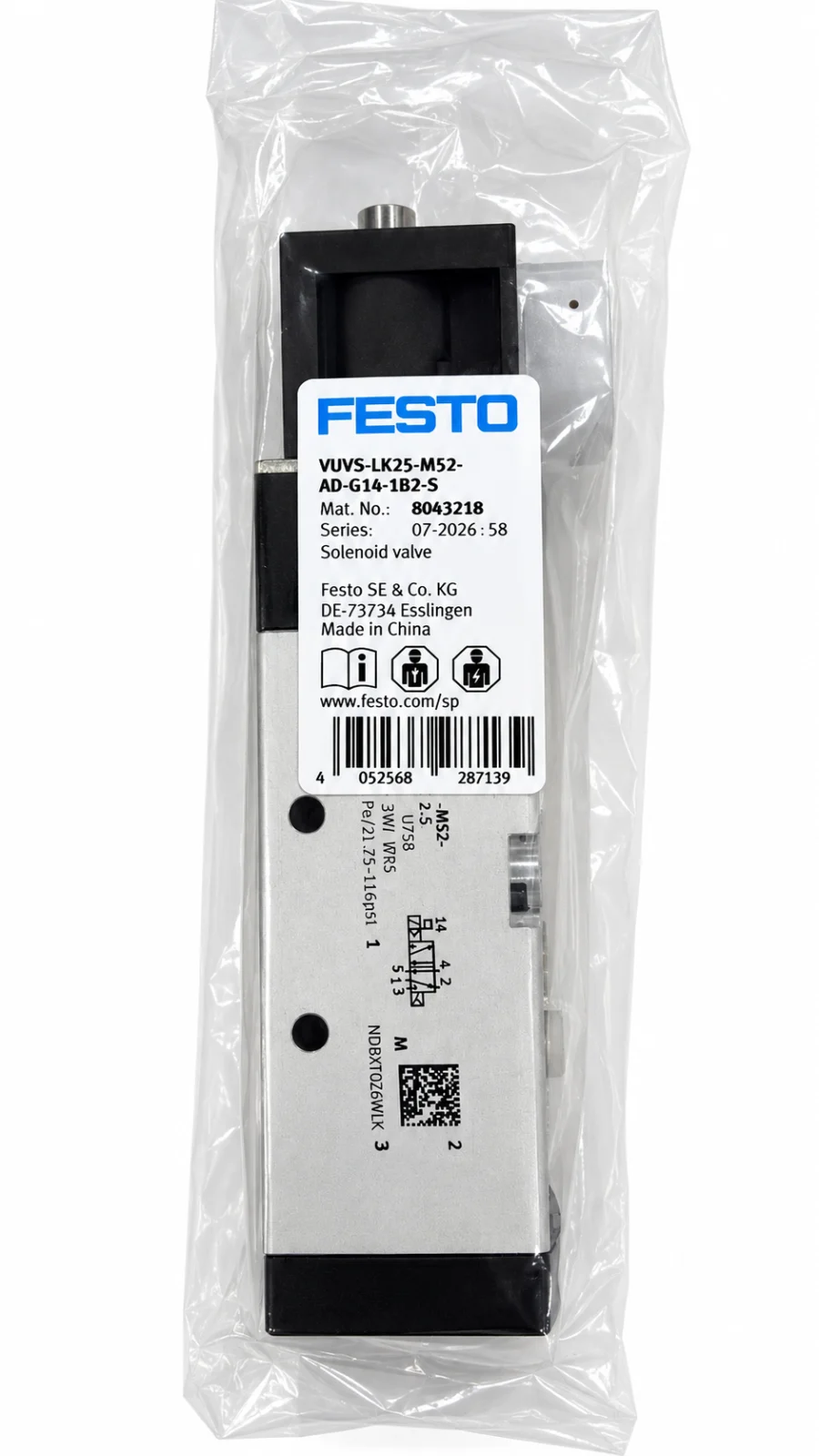

Quote the Festo type code VUVS-LK25-M52-AD-G14-1B2-S or the part number 8043218 with the quantity. Festo builds this valve in other port sizes, as a double solenoid and as a 5/3 way version, and with other coil voltages. Send us the type code printed on the valve or on the bag and we will confirm availability.
